CS428 ATEN 宏正 4 to 8 PS/2 矩陣式机架型KVM,OSD
编号：CS428-at-z
品牌： [查询该品牌全部商品] 单位：个 积分：0 重量：4200 克 CS428为高性能的KVM切换器，提供了最具效率的解决方案，其内建2组PS/2接口控制端及2组DB-25接口控制端，可单独或是多位用户以共享的方式来控制8台服务器电脑主机。CS-428内建DB-25连接接口，可改善机房线材的紊乱状况，并可强化信号的质量与工作效率。
商品售价：￥0.00
订购数量：
个
|
商品介绍
详细参数
多控制端8端口PS/2 KVM多电脑切换器
CS428为高性能的KVM切换器，提供了最具效率的解决方案，其内建2组PS/2接口控制端及2组DB-25接口控制端，可单独或是多位用户以共享的方式来控制8台服务器电脑主机。CS428内建DB-25连接接口，可改善机房线缆的紊乱状况，并可强化信号的质量与工作效率。
功能特点：

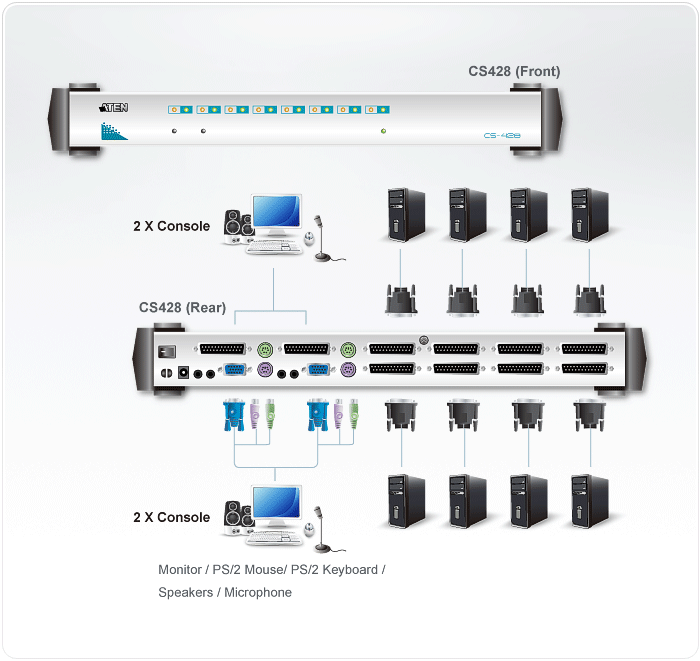

连线图：
技术规格：
| 电脑连接数 | 直接 | 8 | |
| 串联最多可达 | 64 (通过占口级联， 串联CS138A, CS9138, CS128A) | ||
| 电脑切换选择 | OSD | ||
| 连接接口 | 控制端 (1.2) | 键盘 | 2 x Mini Din- 6 母头 (紫) |
| 显示器 | 2 x HDB-15 母头 (蓝) | ||
| 鼠标 | 2 x Mini Din- 6 母头 (绿) | ||
| 音频 | 2 x 立体耳机插孔 母头 (绿) 2 x 麦克风插孔 母头 (粉红) | ||
| 控制端 (3.4) | 键盘 | 2 x D Type-25 母头 (黑) | |
| 显示器 | |||
| 鼠标 | |||
| 电脑 | 8 x D Type-25 母头 (黑) | ||
| 电源变压器插孔 | 1 x DC Jack | ||
| LED指示灯 | 联机 | 8 (橘) | |
| 已选择 | 8 (绿) | ||
| 电源 | 1 (蓝) | ||
| 模拟方式 | 键盘 | PS/2 | |
| 鼠标 | PS/2 | ||
| 视频分辨率 | 1920 x 1440; DDC2B | ||
| 操作温度 | 0°C ~ 50°C | ||
| 储存温度 | -20 °C ~ -60°C | ||
| 扫描时间 | 3,5,10,15,20,30,40,60 Sec | ||
| 耗电量 | DC9V, 7.2W | ||
| 外壳 | 金属 | ||
| 重量 | 4.2 Kg | ||
| 尺寸 ( 长 x 宽 x 高 ) | 45 x 27.5 x 6.7 cm | ||
4-Console 8-Port PS/2 VGA/Audio KVM Switch
CS428
CS428 is a high-efficiency KVM switch which provides the most efficient solution. Its console with 2 built-in PS/2 and 2 DB-25 allows users to control 8 servers either alone or by sharing. The built-in DB-25 of CS428 can reduce cable derangements in component rooms and can enhance signal quality and operation efficiency.
ROHS Weee
Share Add to Compare
Package Contents
1x Multi-console 8-Port PS/2 KVM Switch
2x Console Cable for Console (3,4)
1x Power Adapter
1x Rack Mount Kit
1x User Instructions
Awards won by this product
Features
Diagram
Specifications
Applications
Support and Download
8 PS/2 console control 8 computers.
Up to four users can operate up to 64 computers (via cascade to CS88A and CS9138*) at the same time.
Each console has its own access control
Two-level (Administrator/User) password authorization for enhanced security protection.
Administrator can access any computer completely independently of the other users.
Each user has his own access control list
Computer selection via On Screen Display (OSD)
Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse.
OSD automatically adjusts to resolution changes.
Auto Scan function to monitor computer operation.
With speaker and microphone support.
Superior video quality: Up to 1920 x 1440; DDC2B.
Special design for easy stacking.
Rack mountable in 19" (1U) system rack.
* CS88A and CS9138 do not support audio features of audio enabled KVM switches.
Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD.
For more information about KVMs which can connect to CS428, see Compatible KVM Table.
