CL1008M (CL1108M) ATEN 宏正 四合一帶8口PS/2机架型LCD KCM,OSD（17"）
编号：CL1008M (CL1108M)
品牌： [查询该品牌全部商品] 单位：个 积分：0 重量：13300 克 CL1008 LCD KVM多电脑切换器可提供使用者从单一控制端(键盘、鼠标与显示器)控管多台服务器；一组CL1008 / CL1016可控管至8或16台服务器，并可串接31台KVM多电脑切换器，以从单一控制端管理高达512台电脑。
商品售价：￥0.00
订购数量：
个
|
抽拉式 LCD KVM多电脑切换器 CL1008M (cl1108M)
CL1008 LCD KVM多电脑切换器可提供使用者从单一控制端(键盘、鼠标与显示器)控管多台服务器；一组CL1008 / CL1016可控管至8或16台服务器，并可串接31台KVM多电脑切换器，以从单一控制端管理高达512台电脑。
CL1008整合17"LCD液晶显示器、键盘、触控板及KVM切换器于1U高度，有效节省机架空。
功能特点：
拉式机身设计- 整合17" LCD屏幕与KVM控制端切换器于单一抽拉式机身内，仅占用1U机架空间

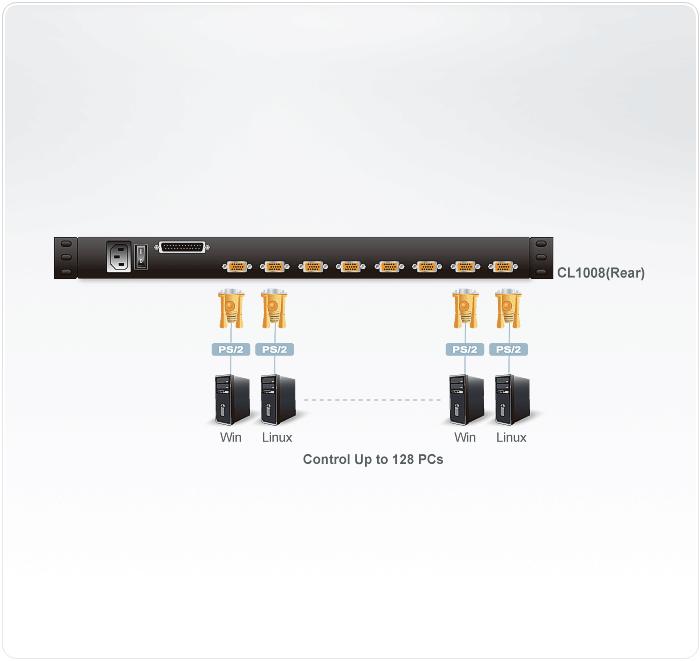

连线图：
技术规格：
| 功能 | CL1008 | ||
| 电脑连接数 | 直接 | 16 | |
| 最大 | 128 通过Daisy Chain式串连 | ||
| 电脑选择 | 面板按钮、OSD、键盘热键 | ||
| 连接头 | 电脑连接端口 | 8 x SPHD-15 母头(黄) | |
| 串连端口 | 1 x DB-25 公头 | ||
| 固件升级端口 | 1 x RJ-11母头 | ||
| 电源 | 1 x 三孔交流电插座 | ||
| 开关 | 重新启动 | 1 x 嵌入式 | |
| 电源 | 1 x 按钮 | ||
| 固件更新 | 1 x Slide切换开关 | ||
| LCD模块调整 | 4 x 按键 | ||
| 连接端口选择 | 8 x 按键 | ||
| LED 指示灯 | 联机 | 8 (橘色) | |
| 选择 | 8 (绿色) | ||
| 电源 | 1 (深蓝) | ||
| Lock | Num | 1 (绿色) | |
| Caps | 1 (绿色) | ||
| Scroll | 1 (绿色) | ||
| 模拟方式 | 键盘/鼠标 | PS/2 | |
| VGA 分辨率 | 1280 x 1024@75Hz; DDC2B | ||
| 扫描间隔(OSD选择 | 1-255秒 | ||
| I/P Rating | 100-240VAC, 50/60Hz; 1A | ||
| 耗电量 | 120V/26W; 230V/28W | ||
| 作业环境 | 操作温度 | 0-40° C | |
| 储存温度 | -20-60° C | ||
| 湿度 | 0-80% RH, 无凝结 | ||
| 机体属性 | 外壳 | 金属 + 塑料 | |
| 重量 | 13.30 Kg | ||
| 尺寸 (长x宽x高) | 63.40 x 48.00 x 4.40 cm(19"/1U) | ||
8-Port PS/2 VGA LCD KVM Switch with Daisy-Chain Port
CL1008
The CL1008 LCD KVM Switch series are control units that allow access to multiple computers from a single keyboard, video, and mouse (KVM), console. A single CL1008 can control up to 8 computers. As many as 15 additional KVM switches can be daisy-chained to the CL1008, so that up to 128 computers can all be controlled from a single KVM console.
The CL1008 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
CL1008M: 17" LCD
ROHS Weee
Share Add to Compare
Package Contents
1x CL1008 with Standard Rack Mount Kit
2x Custom KVM Cable Sets
1x Power Cord
1x Firmware Upgrade Cable
1x User Instructions
Features
Diagram
Specifications
Applications
Support and Download
Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
KVM console with 17" LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
LCD module rotates up to 115 degrees for a more comfortable viewing angle
Standard rack mount kit included - optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
Daisy-chain up to 15 additional units - control up to 128 computers
No software required - convenient computer selection via hotkeys and mouse driven intuitive on screen display (OSD) menus
Auto Scan feature for monitoring user-selected computers
Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
Hot pluggable - add or remove computers without having to power down the switch
Two level password security - only authorized users view and control the computers; up to four users plus an administrator with separate profiles for each
Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
Upgradable firmware
Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD
Keyboard Language support: English (US), English (UK),French, German, German (Swiss), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
